ZDY,ZLY,ZSY,ZFY hard tooth face cylindrical gearbox

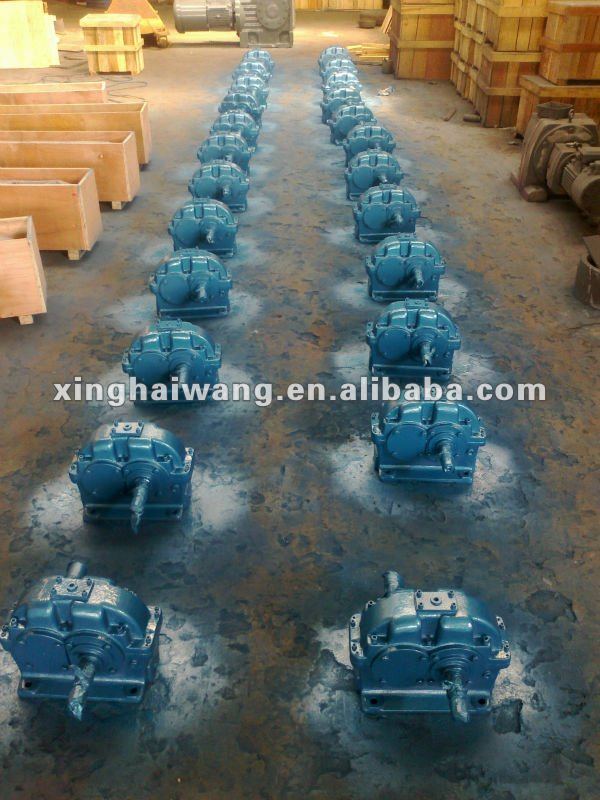

ZLY hard tooth face cylindrical gearbox
ZLY hard tooth face cylindrical gearbox
Quick Details

RELATED PRODUCTS

Quick Details
Gearing Arrangement: cylindrical Output Torque: 493-131611(N.m) Rated Power: 5-5168(kw)
Input Speed: ≤1500 (rpm) Output Speed: 120-1200(rpm) Place of Origin: Zhejiang, China (Mainland)
Model Number: ZDY series Brand Name: XINGHAIWANG certification: ISO9001:2008
material: cast iron housing or other .



Packaging & Delivery
Packaging
 Details:
standard export packing ,inner packing is opp bag, outside packing is wooden case, or According to the customer's requirements packaging.
Delivery Detail: 20 days after confirmation



Specifications

1,Small volume, light weight, high precision, carrying capacity, long service life,

Technical data:

1,output torque:493-131611(N.m)
2,rated power:5*-5168(kw)
3,input speed:≤1500 (rpm)
4,output speed:120-1200(rpm)
5,transmission ratio:1.25-6.3
6,series:1
7,Model no. :ZDY(80-560)

 Characteristics:

1. The center distance ratio and other major both by optimizing design, the main parts and components Has good compatibility.
2. Gear adopts high quality alloy steel cementite, quenching and become, gear hardness to reach HRC58-62.
3. Small volume, light weight, high precision, carrying capacity, long service life, can be By sexual high, low noise, smooth transmission.
4. Generally USES oil pool lubrication, natural cooling, when the thermal power cannot satisfy When, can use circulating oil lubrication or fan, cooling coil cooling.

 If you need any other style needs, please don't feel trouble direct contact with me.
