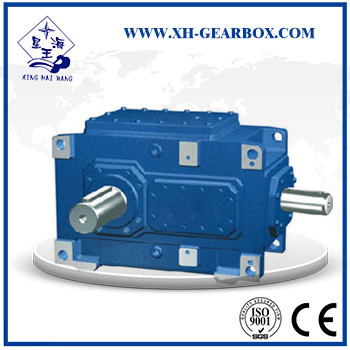

H B series standard industry gearbox

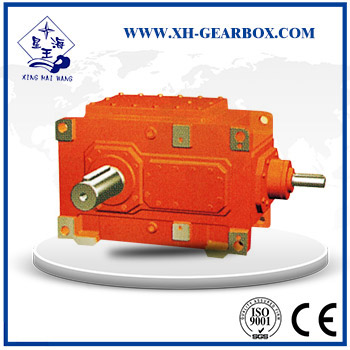

H,B SERIES high-power gearbox
H,B SERIES high-power gearbox
Quick Details


Quick Details



Gearing Arrangement: Helical
Input Speed: ?1500 (rpm)


Output Torque: 2600-900000 (N.m)
Output Speed: ?1500 (rpm)


Rated Power: 4.3-5089(kw)
Place of Origin: Zhejiang, China (Mainland)


Model Number: F series
ccertification: ISO9001:2008
material: cast iron housing
according to client

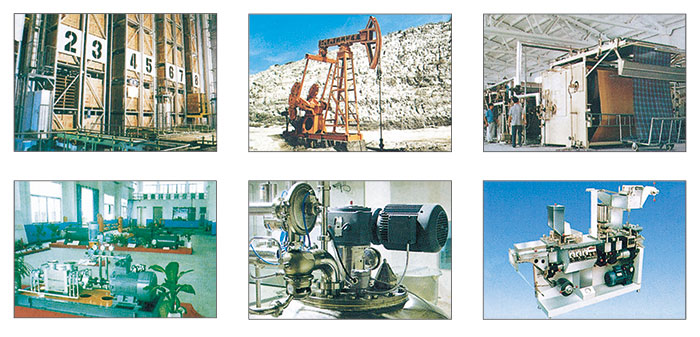

By Industry

Packaging & Delivery
Packaging Details: standard export packing ,inner packing is opp bag, outside packing is wooden case, or According to the
                                    customer's requirements packaging.
Delivery Detail: 20 days after confirmation

1,little vibration, low noise, energy-saving high;
2,short delivery term
3,flange and foot mounting
4,with all kinds of motor


1,Excellent price/performance ratio
2,Long life
3,Short delivery terms
4,product specification under request

Technical data:

1,output torque:2600-90000(N.m)

2,rated power:4.3-5089(kw)

3,input speed:≤1500 (rpm)

4,output speed:≤1500(rpm)

5,transmission ratio:≥1.25-450


7,install form:H/M/V

8,Model no. :BS/BH/BD/HS/HH/HD(3-26)




1, H, B gearbox using universal design scheme, customers can request the variant  for profession  dedicated gear box.
2, realize parallel axis, orghogonal axis, vertical, horizontal general box, types, specifications reduction components increase.
3, using suction speakers body structure and larger body surface area, spiral bevel gear adopts advanced technology and grind teeth big fan of temperature, so the machine noise is reduced, reliability of operation improved, and preach speed power increased.
4, input methods - motor practice after flanges, shaft input.
Five, the output shaft, way - solid with key hollow shaft, shrink plate.
6, installation way - horizontal, vertical, swinging base-every, torque arm type.
7, H, B series products have 1-22 type specification, slowing transmission series have 1-4 class 125-450, speed, and our factory R, K series combination to get greater speed. our company has produced most specifications, if there is need other specification can be further notice.

Note, 1, horizontal adopts splash lubrication, Vertical USES dip oil lubrication pump forced lubricating bearings or.
2, additional parts (fan, external additional mailbox, vertical leaching oil lubrication heightening mailbox, oil pumps and connection) before the size of the other additional supply.
